Overview

The dot-raw to SAInt translation plugin translates power system data from .raw files to SAInt format.

Versions Compatible with SAInt 3.9

  • 0.4.26 (97.2 MB)
  • 0.4.24
  • 0.4.20
  • 0.4.19

Versions Compatible with SAInt 3.8

  • 0.4.12

Versions Compatible with SAInt 3.7

  • v0.3.3
  • v0.1.0

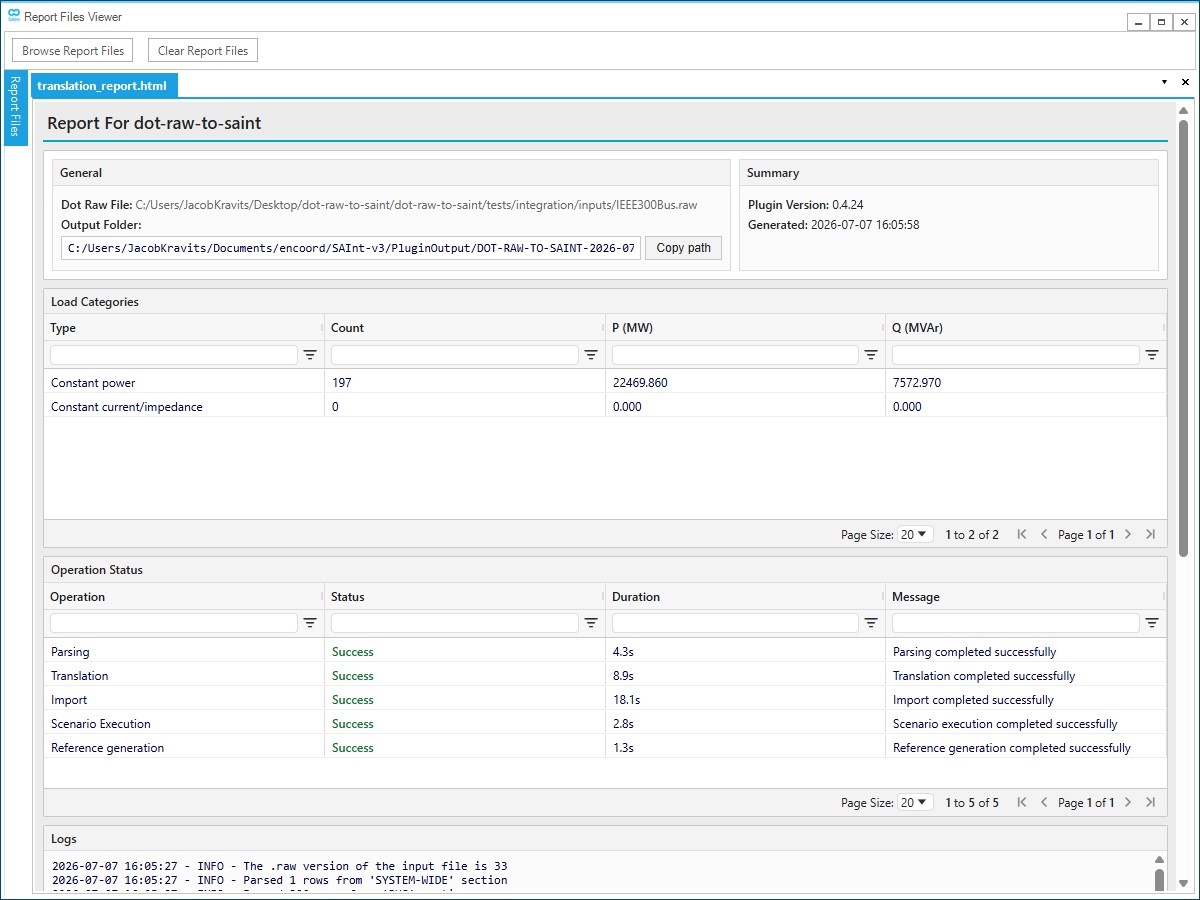

Screenshot:

screenshot
screenshot1211×856 142 KB

  • Multi-Component Translation: Supports translation of major power system components:

    • ZONE
    • BUS
    • GENERATOR
    • LOAD
    • TRANSFORMER
    • BRANCH
    • SWITCHING DEVICE
    • FIXED AND SWITCHED SHUNT DEVICES

  • Version Compatibility: Supports DOT-RAW file versions 33, 34 and 35.

  • Validation & Reporting: Generates an HTML translation report and optional reference.json mapping for validation.

Inputs

  • Path to RAW File
    Full path to the *.raw file.

Advanced Inputs (Optional)

  • Translated Network Name
    Name for the translated SAInt network. Default is "DOT_RAW_NETWORK".

  • SAInt API DLL Path
    Full path to the SAInt API DLL. Defaults to {SAIntInstallPath}//SAInt-API.dll.

  • Output Directory
    Full path to the directory where the translated SAInt network, scenario, and condition files will be saved.
    If the network converges, validation plots will also be saved here. Defaults to {SAIntDocPath}//PluginOutput.

  • Parse Raw File
    Set to True to parse the .raw data into readable CSV files. Defaults to True.

  • Translate Data
    Set to True to convert parsed data into SAInt-compatible Excel import files. Defaults to True.

  • Generate Reference JSON
    Set to True to generate a reference.json file mapping source identifiers to translated SAInt objects. Defaults to True.

  • Create SAInt MRD
    Set to True to generate native SAInt network and scenario files (MRD). Defaults to True.

  • Execute SteadyACPF Scenario
    Set to True to execute the SAInt SteadyACPF scenario for validation. Only relevant when Create SAInt MRD is True. Defaults to True.

  • Generate Translation Report
    Set to True to generate an HTML translation report summarising pipeline stage status. Defaults to True.

  • Save Files
    Set to True to save all generated files. Defaults to True.

  • Write JSON Network
    Set to True to write the SAInt network as a JSON file alongside the Excel import file. Note: this is slower for large networks. Defaults to False.

Installation

What You Need

  • The latest version of SAInt installed.
  • The packaged DOT-RAW to SAInt plugin.

A packaged plugin will typically contain:

dot-raw-to-saint.plugin/
├── main.exe
├── form.yaml
├── icon.svg
└── _internal/

Installing or Selecting the Plugin in SAInt

  1. Open the SAInt GUI.
  2. Go to Tools → Plugin Settings → Install Plugin.
  3. Select the DOT-RAW to SAInt plugin file.
  4. Select Apply & Exit.

Running the Plugin

  1. Open the SAInt GUI.
  2. Go to Tools and select the installed DOT-RAW to SAInt plugin.
  3. Complete the plugin form:
    • Select the required .raw file.
    • Optionally configure advanced settings (translated network name, output directory, pipeline stages, and related options).
  4. Execute the plugin.

Example with IEEE 118 Bus System

The following is an example of running the plugin with the IEEE 118 Bus System.

What You Will Need

  • The latest version of SAInt.
  • The packaged DOT-RAW to SAInt plugin (see Installation).
  • The IEEE 118-Bus System .raw dataset, downloadable from: here

Running the Example

After installing the plugin, open it from Tools and fill out the form:

  • Path to RAW File: path to your IEEE 118 .raw file
  • Output Directory (Advanced Input): path to your output directory
  • Translated Network Name (Advanced Input): IEEE_118

Then execute the plugin.

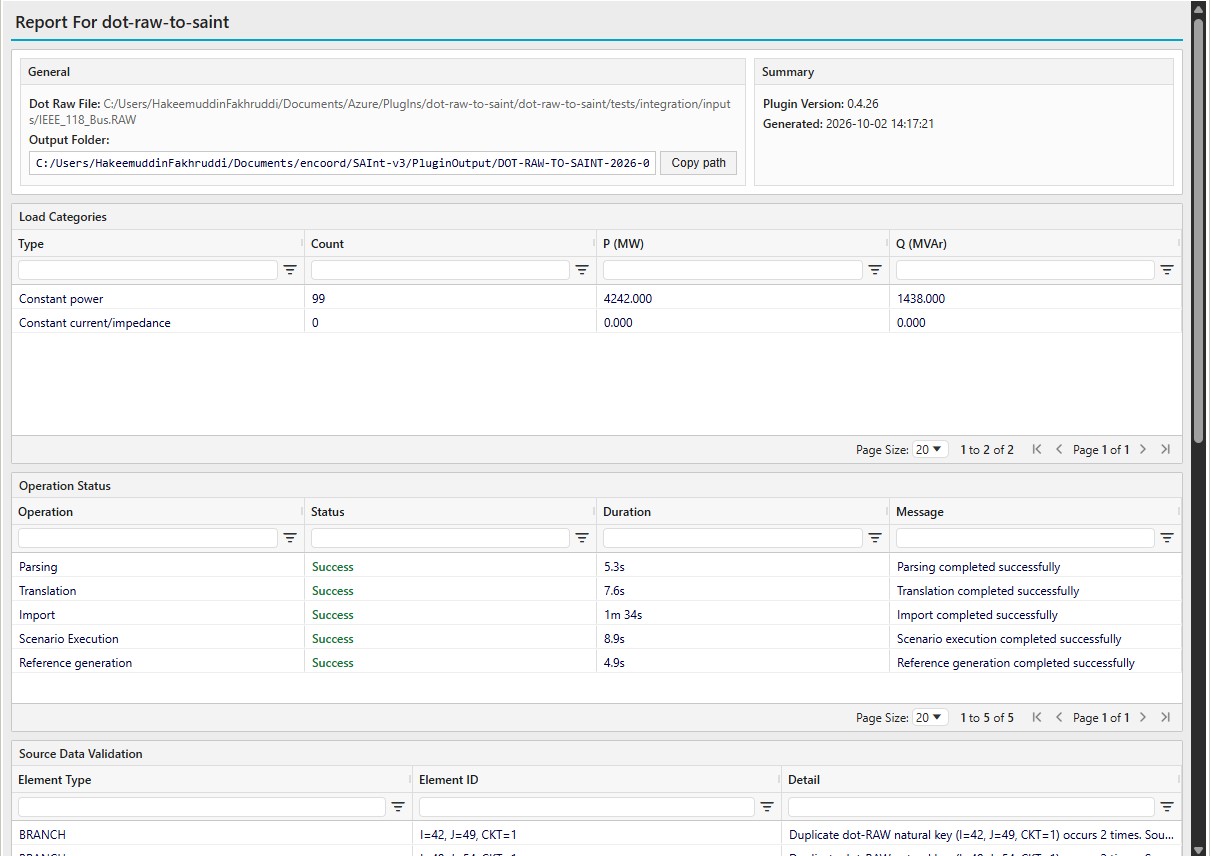

Understanding the Output

With the default advanced settings enabled, the specified output directory will typically contain:

output_folder/
├── IEEE_118.enet                    # SAInt network file
├── acpf.esce                        # SteadyACPF scenario file
├── acpf.econ                        # Scenario condition file (if simulation succeeds)
├── network.xlsx                     # SAInt-compatible network import file
├── reference.json                   # Source identifier → SAInt object mapping
├── info.log                         # Translation operation logs
├── translation_report.html          # Translation report (pipeline stage status)
└── data/
    └── parsed/                      # Parsed .raw section data
        ├── BUS.csv
        ├── BRANCH.csv
        ├── GENERATOR.csv
        ├── LOAD.csv
        ├── TRANSFORMER.csv
        ├── parsing_metadata.yml
        └── ...

Optional output (when Write JSON Network is True):

output_folder/
└── network.json                     # SAInt network as JSON (alongside network.xlsx)

File Descriptions

File/Folder Description
{network_name}.enet SAInt native network file
acpf.esce SAInt SteadyACPF scenario file
acpf.econ SAInt scenario condition file (created only if scenario execution succeeds)
network.xlsx SAInt-compatible Excel network import file
network.json Optional JSON export of the SAInt network (disabled by default)
reference.json Mapping of dot-raw source identifiers to translated SAInt objects
info.log Log file recording translation operations
translation_report.html HTML translation report with pipeline stage status, findings, and captured logs
data/parsed/ Folder containing .csv representations of parsed .raw sections, plus parsing_metadata.yml

Changelog

v0.4.26

  • Line Naming: Changed the LI name prefix from BRANCH to LI.
  • Switch Ratings: Added translation of switch ratings.
  • RAW Parsing: Improved section-boundary detection, missing-delimiter repair, and duplicate-name handling for inconsistent dot-raw files.
  • Transformer Improvements:
    • Tightened TAP property translation so tap limits, step size, and setpoints are derived consistently from winding ratios and translated to valid SAInt tap positions.
    • Fixed translation failures caused by non-finite transformer tap data reaching integer property calculations.
    • Fixed TRF VMSETDEF so voltage-regulating two-winding transformers use the midpoint of the dot-raw voltage band ((VMA + VMI) / 2).
    • Fixed TAPSETDEF derivation from the current winding value and added TAPN translation for the unity-ratio tap position used by SAInt.
    • Corrected transformer impedance base conversion for secondary taps.
    • Corrected voltage and reactive-power deadband calculations and Mvar/per-unit conversion for reactive-power control (D/QSETDEF).
  • Reference JSON:
    • Restored missing fixed and switched shunt (SHT) objects in reference.json.
    • Added EPS objects for VSC DC Line and TWO-TERMINAL DC Line.
    • Removed out-of-service transformers from reference.json.
    • Added off-nominal tap ratio to reference data.
    • Corrected tap normalization in transformer power-flow calculations for CW = 2, preventing excessively large reference values.

v0.4.24

  • Load Translation: Added support for constant current and constant impedance load components by converting them to constant-power equivalents.
  • Pipeline Controls:
    • Split the previous execute_scenarios stage into separate Import and Execute_Scenario stages.
  • Substation Data: Added handling for substation-level data during translation.
  • Switched Shunts:
    • Fixed switched shunts with MODSW = 0 so they are translated with CTRLMODE = FIXED.
    • Updated switched-shunt active-power validation references to include the voltage-squared calculation.
  • Transformer and Base Voltage Fixes: Corrected transformer RATEDV and electrical node BaseV handling.
  • Plugin UI: Enforced consistent table row heights.

v0.4.20

  • Constant Reference File Generation: Fixed bug preventing reference file from being generated on failed simulations.

v0.4.19

  • Validation Accuracy: Migrated validation to translation-validator and fixed comparison issues for switched shunt active power, load-as-generator reactive power, and shunt reactive power.
  • Reference JSON:
    • Added reference.json generation during translation.
    • Added missing result and reference properties for translated objects.
    • Normalized dot-raw voltage angles in generated reference data.
  • Emergency Ratings: Added translation of RATE2 and RATE3 values for lines and transformers.
  • Shunts and FACTS Devices:
    • Translated shunt FACTS devices as switched shunts.
    • Aligned switched shunt translation with the updated SAInt functionality.
    • Preserved line charging B values on DUMMY_TRF_BRANCH entries and created transformer/dummy-transformer shunts from positive charging values.
  • Generator and Load Limits: Corrected QMAX/QMIN translation and generator control-mode handling for reactive power limits.
  • Transformer Improvements:
    • Aligned tap setting derivation from dot-raw data.
    • Corrected transformer rated voltage derivation.
    • Updated source identifiers for virtual star nodes.
  • HVDC and Grouping: Fixed duplicate EGRP creation for a single HVDC device and aligned HVDC group/member naming.
  • Metadata:
    • Saved the dot-raw-to-saint version in ENET metadata.
    • Added relevant dot-raw source information to reference properties and ENET metadata.
  • Plugin UI and Reports: Updated the plugin form and translation report to meet current UI/UX standards.

v0.4.12

  • HVDC Support: Added support for VSC DC and Two Terminal DC devices with updated implementation to use two prosumers
  • Switched Shunts: Full support for switched shunt devices translation
  • Enhanced Information Fields:
    • Info3 column now contains dot-raw object type for unique identification
    • Info property populated with relevant information from dot-raw
    • Identifying information moved to Info3 field
  • Negative Generator Translation: Generators with negative “PB” values are now correctly translated into SAInt EPS
  • Line Shunt Translation: Line G/B ij values are now translated to additional shunt devices
  • Dummy Transformers: Added support for dummy transformers to accommodate unequal BaseVs from .raw files
  • Intertie Groups: SAInt EGRPs are now created for interties between .raw Areas
  • Transformer Improvements:
    • Translation logic updated to use star configuration for 3-winding transformers
    • TRANSFORMER ANG properties translated to SAInt TRF PHISETDEF
  • Validation & Reporting:
    • HTML translation report
    • Standardized pipeline structure with notifications for zero impedance lines during validation
    • Dot-raw results integrated into SAInt constants
  • Remote Voltage Control: Support for remote node voltage control for generators
  • Default Naming: Updated default naming convention
  • Zone Reference Nodes: ReferenceNodeName for zone objects now contains reference node name
  • Duplicate Zones: Fixed duplicate zones being generated for each Area
  • Duplicate Columns: Fixed duplicate inservice columns for lines
  • Duplicate Shunt Devices: Resolved issue with duplicate shunt devices
  • Transformer Ratings: Dummy transformers now capture correct ratings
  • EPS Power Limits: Fixed negative PGMAXDEF for EPS (now correctly set as PDMINDEF)
  • Intertie Groups: Transformers are now correctly captured in intertie groups
  • Three-Winding Transformers:
    • Fixed star-node RatedV issues
    • Updated equivalencing logic
    • Fixed GGDEF/BBDEF values (now properly set for all windings, not just winding 1)
  • Impedance Translation:
    • Fixed transformer impedance translation when CZ = 3
    • Updated CZ = 2 implementation
    • Use bus BaseV when nominal voltage is 0 for converting TRF impedances
  • Control Logic:
    • Fixed RemoteName field handling when COD{1,2,3} = 0 (No Control)
    • Updated CM = 1 and CM = 2 implementations
  • Power Flow Settings:
    • Updated PFSETDEF implementation
    • Fixed EPS PDMAXDEF values being set to negative
  • Bus Handling: Fixed Bus IDE = 4 being ignored
  • Polarity Issues:
    • Fixed polarity handling for branch shunt conductance (G)
    • Fixed polarity handling for GENERATOR (PB) value
  • Validation Plots: Removed out of service branches from branch comparison plots
  • Q Comparison: Fixed Q comparison for SHT (shunt devices)
  • Parsing: Fixed incorrect parsing when properties contain commas and slashes within values
  • SAInt Compatibility: Removed “Press any key to continue” prompt (no longer supported by SAInt)

v0.3.0

  • System data parsing: Properties like version, network frequency are now automatically parsed.
  • Version 34 support: Files with version 34 can now be translated!
  • Group Translation Logic: SAInt EGRP objects are now created from raw zone objects!
  • Bug Fixes: Various bug fixes like fixing translation failures for switched shunt objects.

v0.1.0

  • Robust Translation: Translate from dot-raw files to SAInt files.
  • Automated Validation: Perform basic validation to ensure accurate translation.
